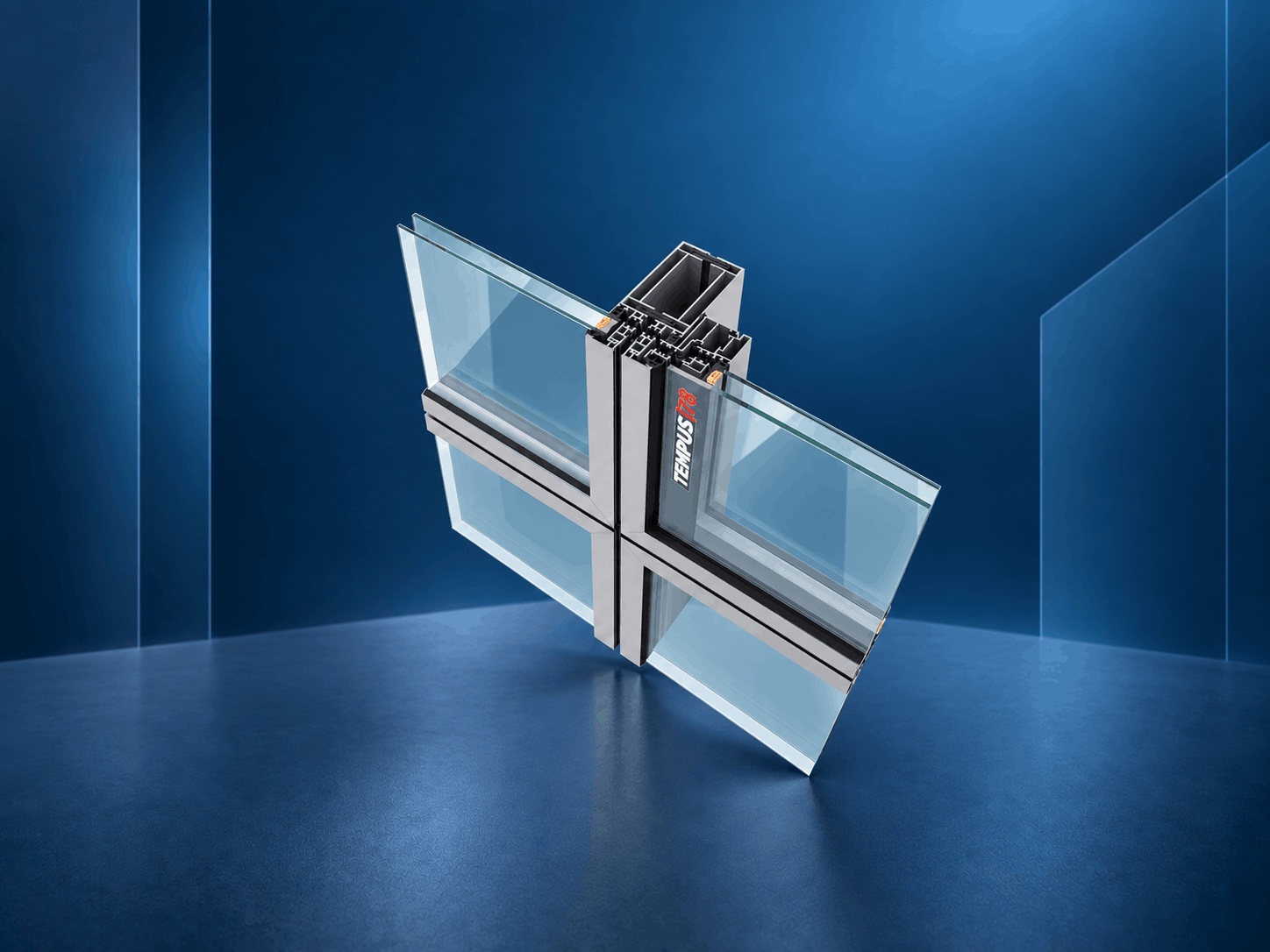

ALUMINIUM CURTAIN WALL SYSTEM
TEMPUS 78
Speed & Quality.
Seamless Panel Façades.
TEMPUS 78 panel façades combine speed and quality. Modular pre-assembled panels ensure fast, seamless installation while maintaining visual consistency across facades.
Experience efficiency, reliability, and aesthetic perfection in every project.
78 MM CURTAIN WALL SYSTEM
78 MM
PROFILE WIDTH
30 MM
MAX. GLASS THICKNESS
1.88–4.80
THERMAL INS. VALUE W/m²K
2.0 MM
PROFILE WALL THICKNESS
TECHNICAL PROPERTIES
Technical Properties
TEMPUS 78 provides flexible profile dimensions, thermal insulation options and glazing compatibility for modern curtain wall applications.
PROPERTY
VALUE
Profile Widths
78 mm
Profile Depths
100, 120, 140, 150 mm
Thermal Insulation Value
1,88 W/m²K –
2,33 W/m²K –
3,79 W/m²K –
4,80 W/m²K
Profile Wall Thickness
2.0 mm
Max. Glass Thickness
30 mm
Insulation Bar
14,8 mm
VARIATIONS
System Variations
TEMPUS 78 is available in different curtain wall configurations together with a hidden top-hung sash option.
CURTAIN WALL OPTION
Capped Curtain Wall
✓
CURTAIN WALL OPTION
Silicone Curtain Wall
✓
OPENING OPTION
Outward Opening Hidden
Top-Hung Sash
✓
